Plot part of 3D

General Discussion
1

Can freefem++ plot one labelled surface of a 3D geometry?

2

Export the mesh / a solution with savevtk and post-process the data using Paraview. Use the threshold filter applied to the label data to display only your desired surface.

3

Thanks very much for your answer. I tried it, however, it seems not work. Can you show the label 1 surface with a .vtk file which can directly generated from the following .edp file. It is only a mesh file. And my aim is to check whether the tetgenreconstruction would change the surface labels.
ex2-cube_tetgen.edp (335 Bytes)

4

Thank you for supplying the edp. I do not see any problem:

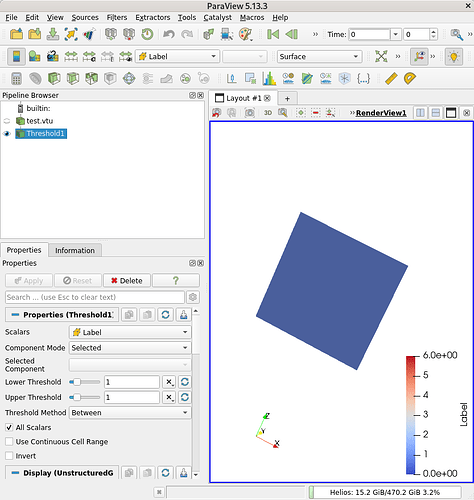

label1
label1835×879 89.2 KB

1 Like
5

I think you can use the threshold filter, and in select the label field, and specify a range which corresponds to the surface label you wish to visualize.

6

Thank you very much! It works very well.
